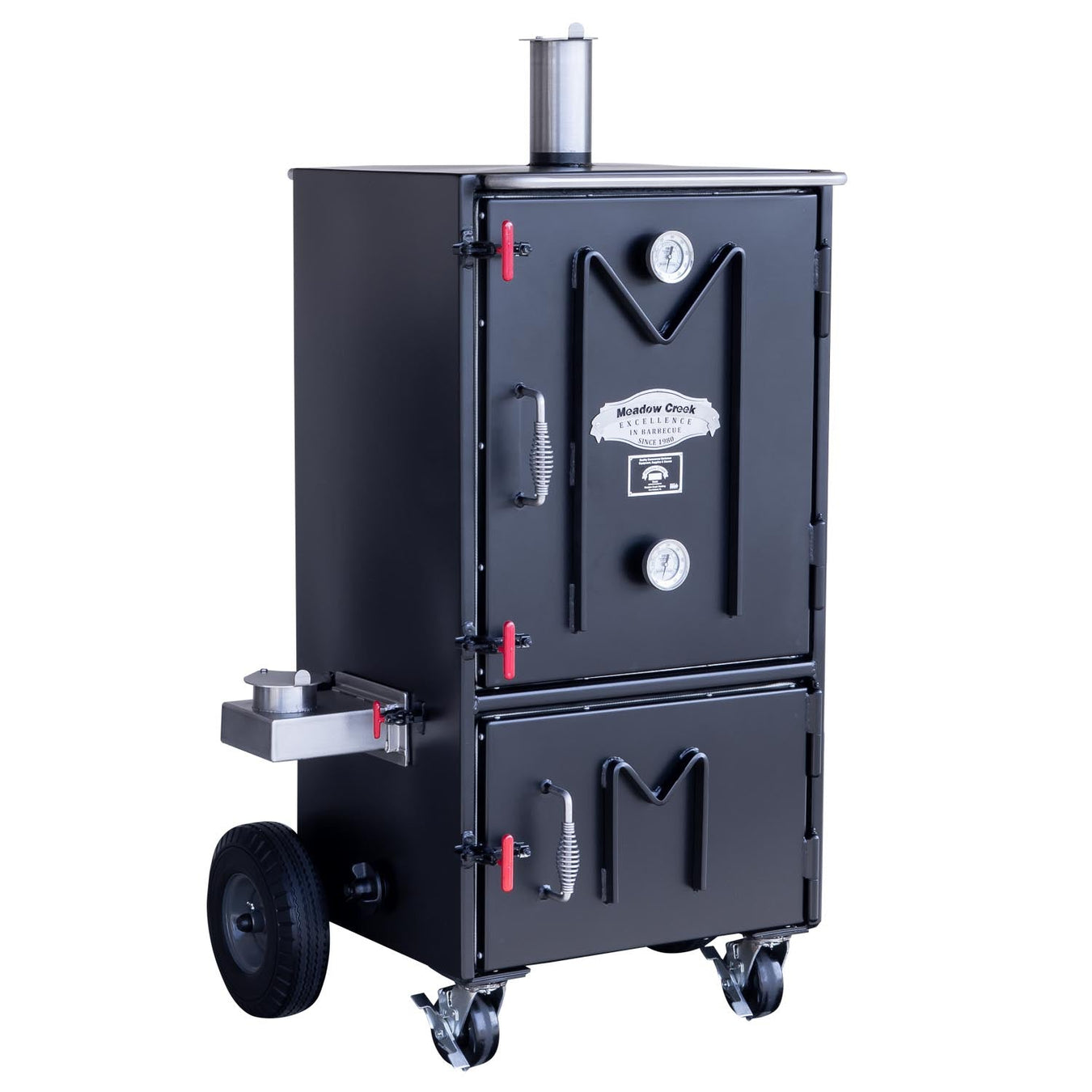

The Meadow Creek BX50 Cabinet (Box) Smoker is a heavy‑duty, insulated vertical charcoal smoker built for serious backyard cooks and professional pit masters who want competition‑level results with set‑and‑forget ease.

Its double‑wall insulated design, water system, and generous rack space make it ideal for long overnight cooks on brisket, pork shoulders, ribs, and poultry, while the slide‑out fire basket and ash pan simplify fuel management and cleanup between runs.

Why order from SmokeCraft IQ? Authorized dealer. Free & prompt shipping. Excellent customer support.

Features

Insulated vertical charcoal cabinet smoker built for both backyard enthusiasts and serious competitors who are cooking for up to 200 people.
Double-wall 13‑gauge steel body with 1" insulation for excellent heat retention and fuel efficiency.
Auto‑feed water system with included 5‑gallon jug for true set‑and‑forget water smoking.
Designed for wet or dry smoking so you can run it as a traditional water smoker or a dry cabinet pit.
Slide‑out charcoal basket and separate ash pan for fast lighting, easy refueling, and quick clean‑up.
Four slide‑out T304 stainless steel cooking grates, each sized to hold a full‑size steam‑table pan.
Seven rack positions (with optional extra grates) to fine‑tune cooking space for different meats.
Two stainless steel, calibratable door thermometers for monitoring top and bottom of the cook chamber.
Cast‑iron spin vents on the firebox and built‑in Guru adapter for precise draft and controller hookup.
Heavy‑duty door latches, gasketed doors, and cool‑touch stainless handles to keep smoke and heat locked in.
Rolls easily on two solid rear wheels and two locking front casters for positioning at home or on‑site.
Optional upgrades such as stainless steel interior, extra grates, rib rack, vinyl cover, and wagon chassis.

Specs

Overall dimensions: 34" D x 44" W x 66" H
Cooking grate dimensions: 18" L x 22" W stainless steel wire grids with 1/2" spacing
Smoking chamber dimensions: 20" D x 24" W x 29" H
Fire basket dimensions: 20" L x 18" W x 6" H
Cooking area: approx. 11.56 sq. ft. (1,665 sq. in.)
Net weight: 625 lbs.
Shipping weight (on skid): 775 lbs.
Shipping dimensions: 50" L x 42" W x 74" H
Fuel type: Charcoal with optional wood chunks or splits for flavor.
Typical burn: about 8 hours at 250°F on roughly 20 lbs. of charcoal.
Assembly required: minimal (primarily attaching small external components and installing grates).

Resources

Meadow Creek Buyer Guide (PDF) – includes an overview of BX‑series smokers and how they compare to other models.
BX50 Box Smoker Spec Sheet (PDF) – detailed dimensions, weights, and options.
BX Series Operator’s Manual (PDF) – setup, firing, water system, and maintenance instructions.

Warranty

Manufacturer’s warranty provided by Meadow Creek on materials and workmanship for the original purchaser.
Warranty coverage applies to normal residential and commercial use when the smoker is assembled, operated, and maintained according to the owner’s manual.
Paint, gasket material, and other wear items are considered consumables and are typically excluded from long‑term coverage.
Contact Meadow Creek or your authorized dealer directly for current warranty terms and procedures.

Shipping & Returns

This smoker ships by freight on a pallet due to its size and weight.
Customer must be present at delivery; freight carrier will schedule delivery and may require curbside or driveway drop‑off depending on access.
Purchaser is responsible for inspecting the shipment on arrival and noting any visible damage or shortages on the delivery receipt before signing.
Any concealed damage must be reported promptly according to the manufacturer’s and carrier’s policies.
Returns are generally subject to the manufacturer’s approval, must be in new, unused condition, and may incur restocking and freight charges.
